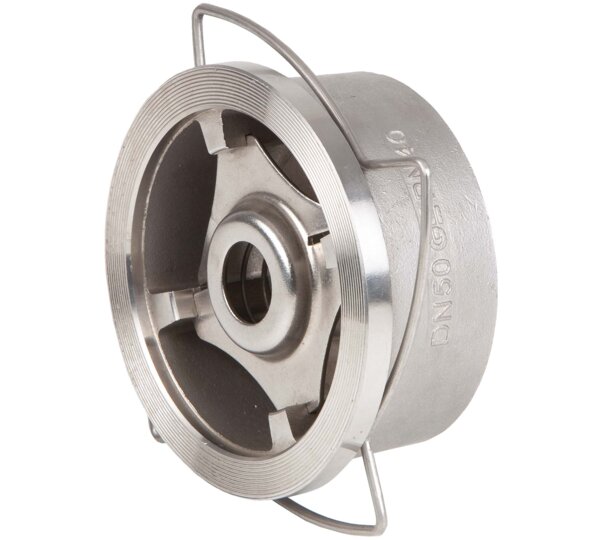

Wafer type. Disk check valve PN 40 ≤ 100. PN 25 > DN100

  •  Wafer check valve, single disk.
  •  Made of stainless steel 1.4408 (CF8M).
  •  Disk made of stainless steel 1.4408 (CF8M).
  • Spring made of AISI 316.
  •  Small dimensions.
  •  Assembly between flanges EN 1092 PN10/16/25/40
     and ANSI 150/300.
  • Installed with vertical, horizontal or inclined flow.
  •  Centering Ring.
  •  Face to Face according to EN 558-1 S.49.
  •  Max. Working pressure 40/25 bar (see table).
  •  Low head loss.
  •  Working Temperature -20ºC +240ºC
