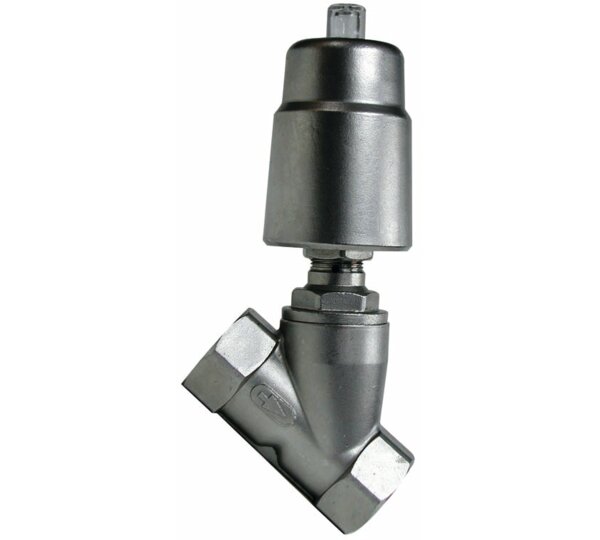

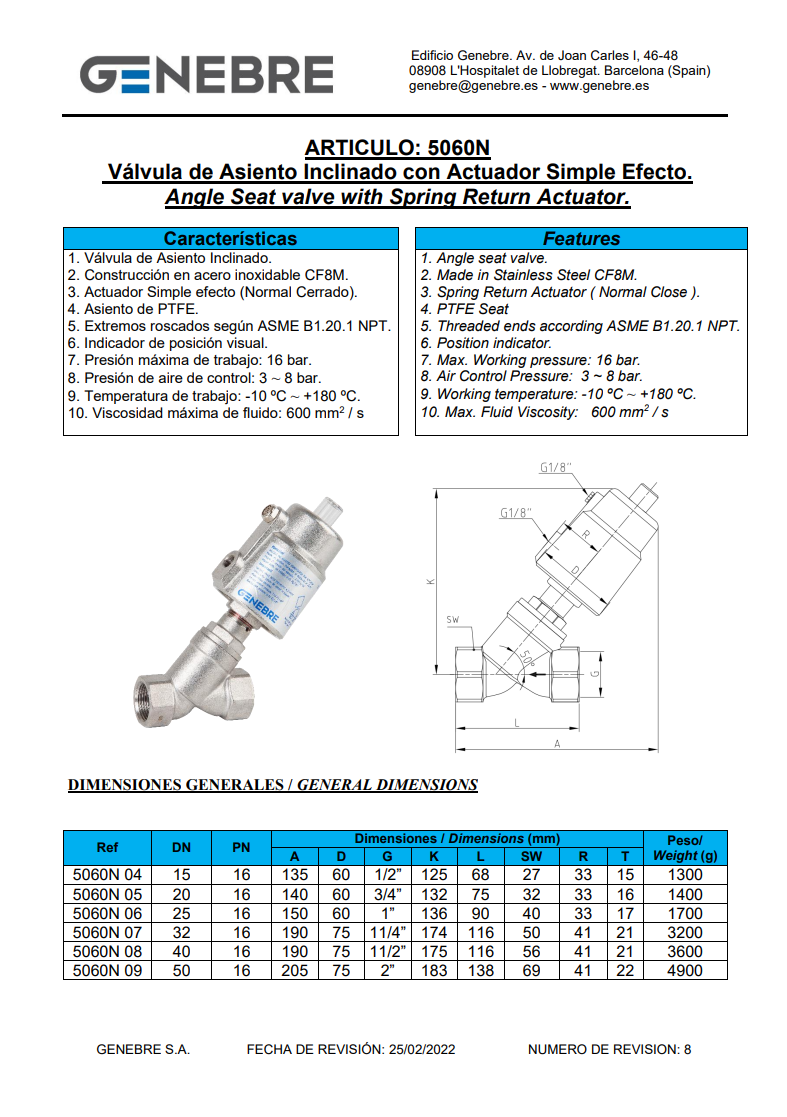

Slanted seat valve with spring return actuator Ref:5060N

5060N 07
  • Angle seat valve.
  •  Made in Stainless Steel CF8M.
  •  Spring Return Actuator ( Normal Close ).
  •  PTFE Seat
  •  Threaded ends according ASME B1.20.1 NPT.
  •  Position indicator.
  •  Max. Working pressure: 16 bar.
  •  Air Control Pressure: 3 ~ 8 bar.
  •  Working temperature: -10 ºC ~ +180 ºC.
  •  Max. Fluid Viscosity: 600 mm2/ s
