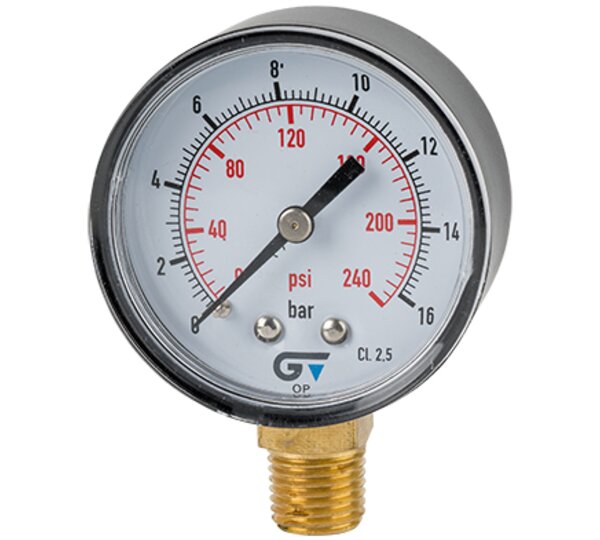

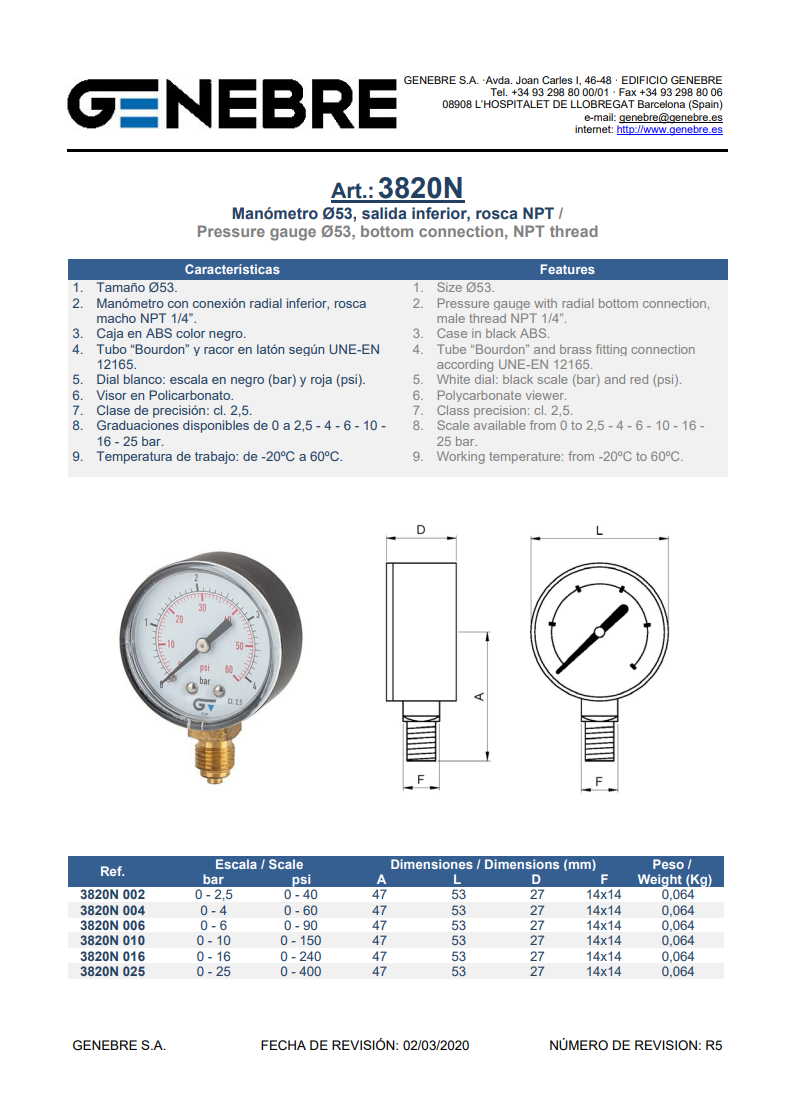

Pressure gauge Ø 53, bottom outlet, NPT thread 1/4". Ref:3820N

  •  Size Ø53.
  •  Pressure gauge with radial bottom connection,
     male thread NPT 1/4”.
  •  Case in black ABS.
  •  Tube “Bourdon” and brass fitting connection
    according UNE-EN 12165.
  •  White dial: black scale (bar) and red (psi).
  •  Polycarbonate viewer.
  •  Class precision: cl. 2,5.
  •  Scale available from 0 to 2,5 - 4 - 6 - 10 - 16 -
    25 bar.
  •  Working temperature: from -20ºC to 60ºC
