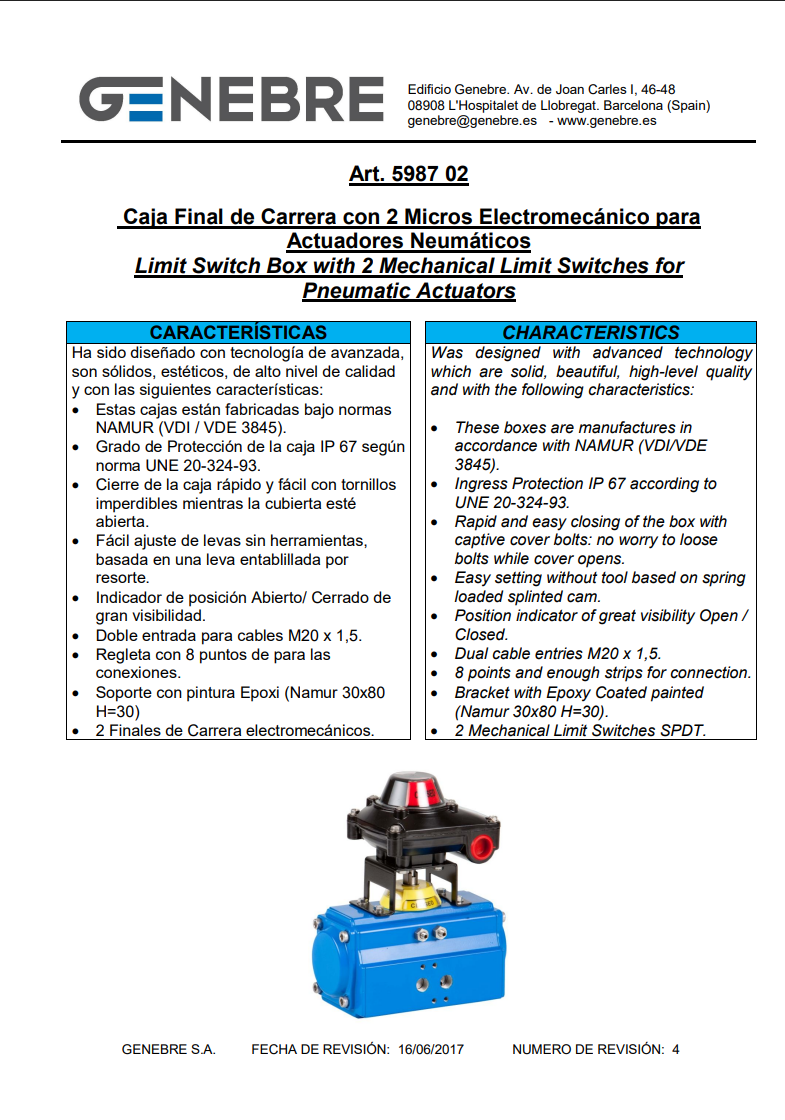

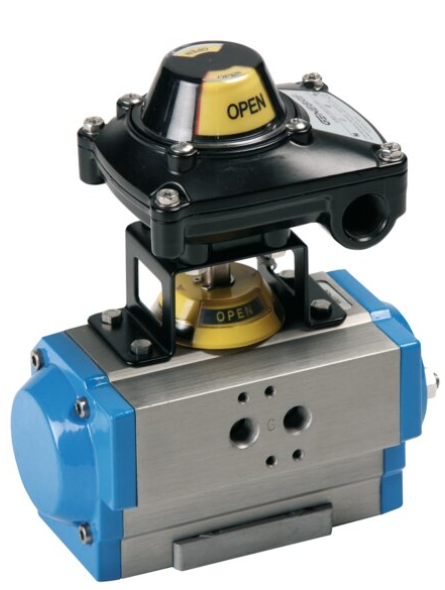

Limit Switch Box with 2 Mechanical Limit Switches for Pneumatic Actuators. Ref:5987 02
Limit Switch Box with 2 Mechanical Limit Switches for Pneumatic Actuators. Ref:5987 02
Limit Switch Box with 2 Mechanical Limit Switches for Pneumatic Actuators. Ref:5987 02
Limit Switch Box with 2 Mechanical Limit Switches for Pneumatic Actuators. Ref:5987 02
Limit Switch Box with 2 Mechanical Limit Switches for Pneumatic Actuators. Ref:5987 02

Limit Switch Box with 2 Mechanical Limit Switches for Pneumatic Actuators. Ref:5987 02

          Was designed with advanced technology which are solid, beautiful, high-level quality
          and with the following characteristics:

  • These boxes are manufactures in accordance with NAMUR (VDI/VDE
    3845).
  • Ingress Protection IP 67 according to UNE 20-324-93.
  • Rapid and easy closing of the box with captive cover bolts: no worry to loose
    bolts while cover opens
  • Easy setting without tool based on spring loaded splinted cam.
  • Position indicator of great visibility Open /Closed
  • Dual cable entries M20 x 1,5
  • 8 points and enough strips for connection.
  • Bracket with Epoxy Coated painted (Namur 30x80 H=30).

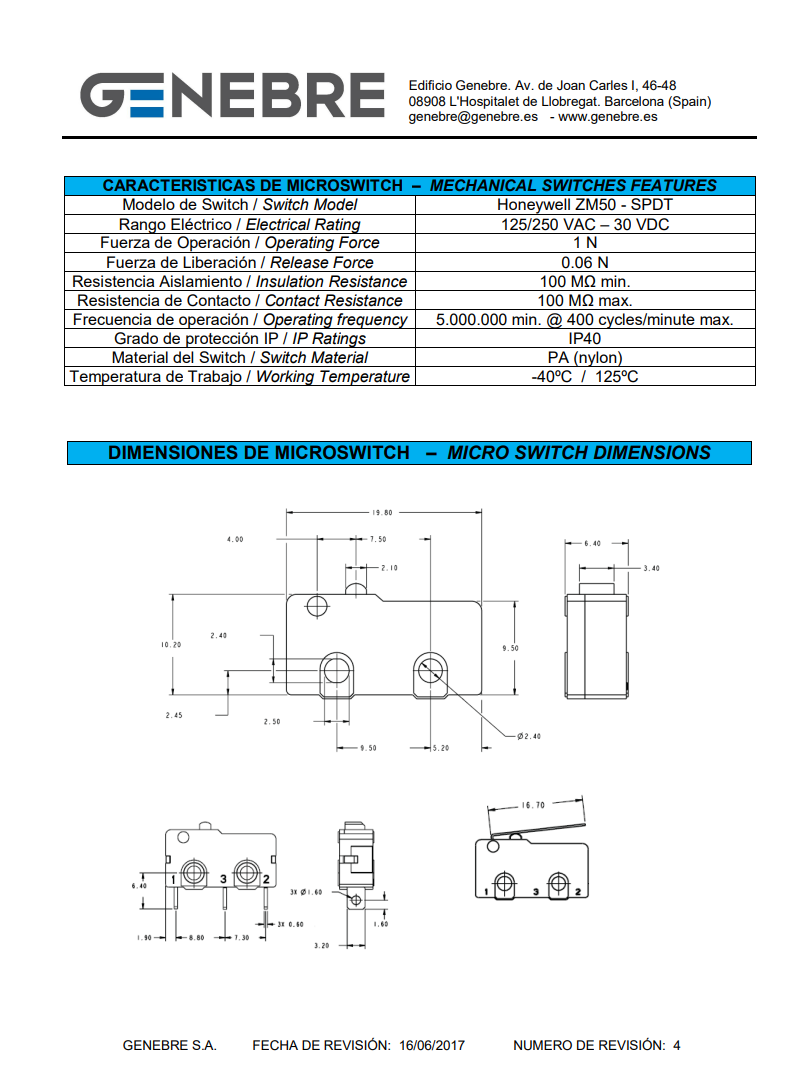

  • 2 Mechanical Limit Switches SPDT.
